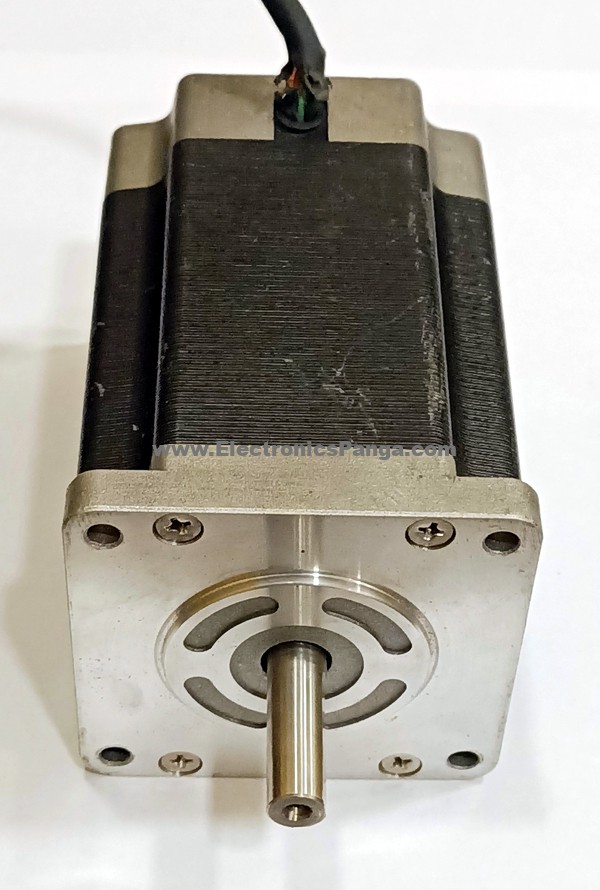

AUTONICS A16K-M569 5-Phase 0.72° Nema24 Stepping Motor + Driver MD5-HF14 SMD38

Description

Condition: Used, Check Test, Ok
Brand: Autonics
Phase: 5
Stock:
Item Code: SMD38

Stepper Motor Specification:
Model: A16K-M569
Type: Nema24
Voltage: 2.27V/DC
Ampere: 1.4A
Number Of Wires: 5
Step: 0.72°
Length(without flange & Shaft): 90mm
Width & Height: 60mm
Shaft Diameter: 8mm
Flange Diameter: 36mm
Weight: 1.32kg

Stepper Driver Specification:
Model: MD5-HF14
Supply Voltage: 100-220V/AC
Output Current Max: 3.0A
Size: 134mm X 42mm X 170mm
Weight: 656g

Servo & stepper motors are also available, Delivery across all over Pakistan.
Self-pickup in Faisalabad.
