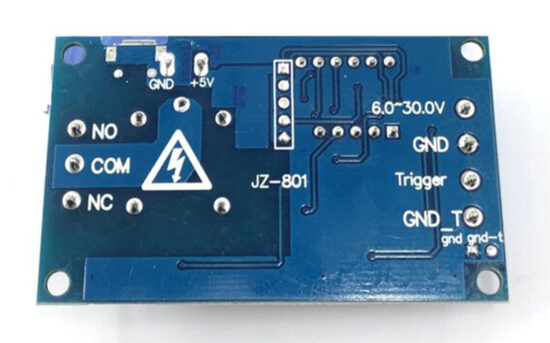

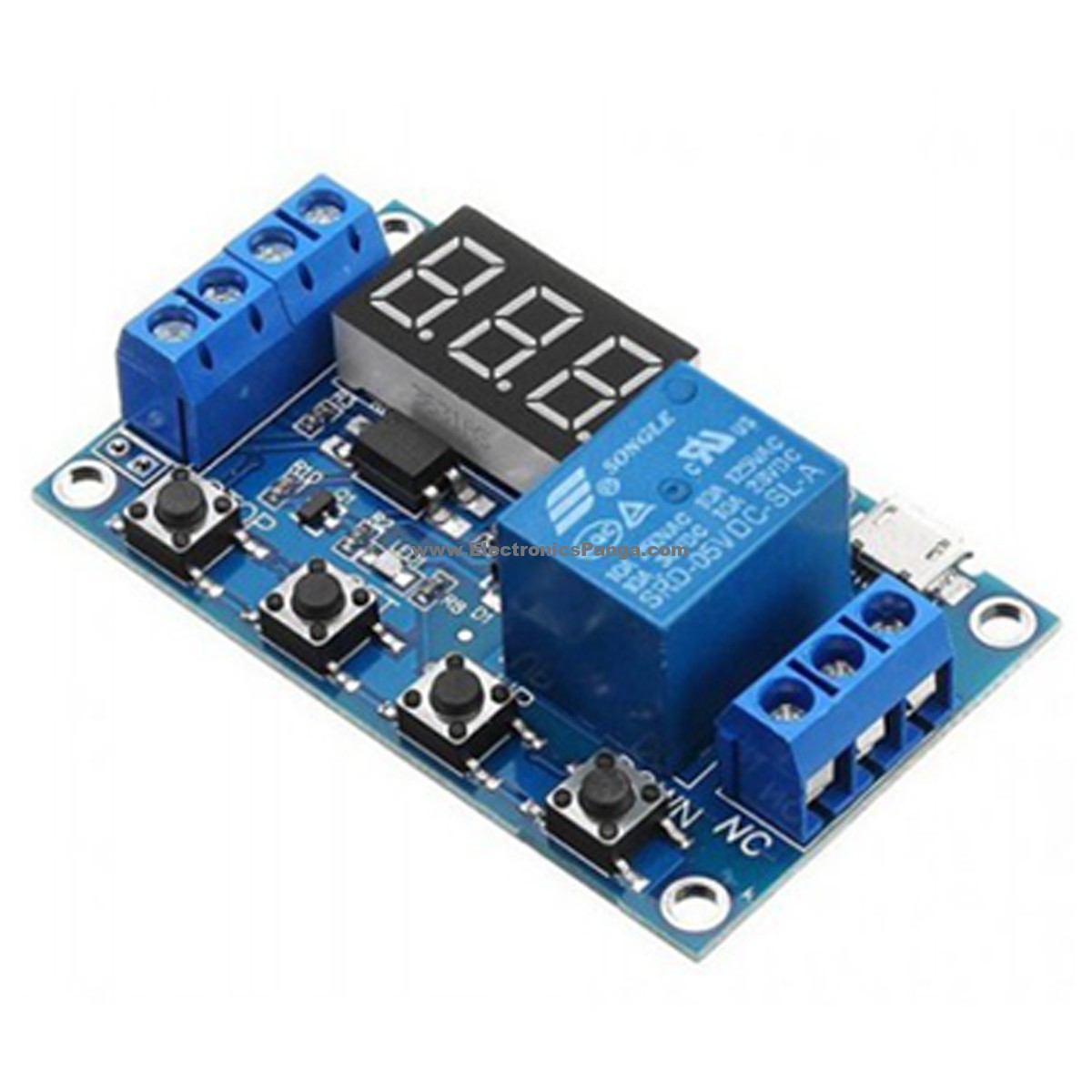

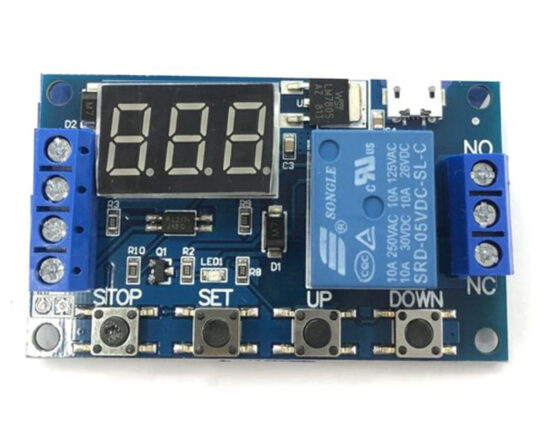

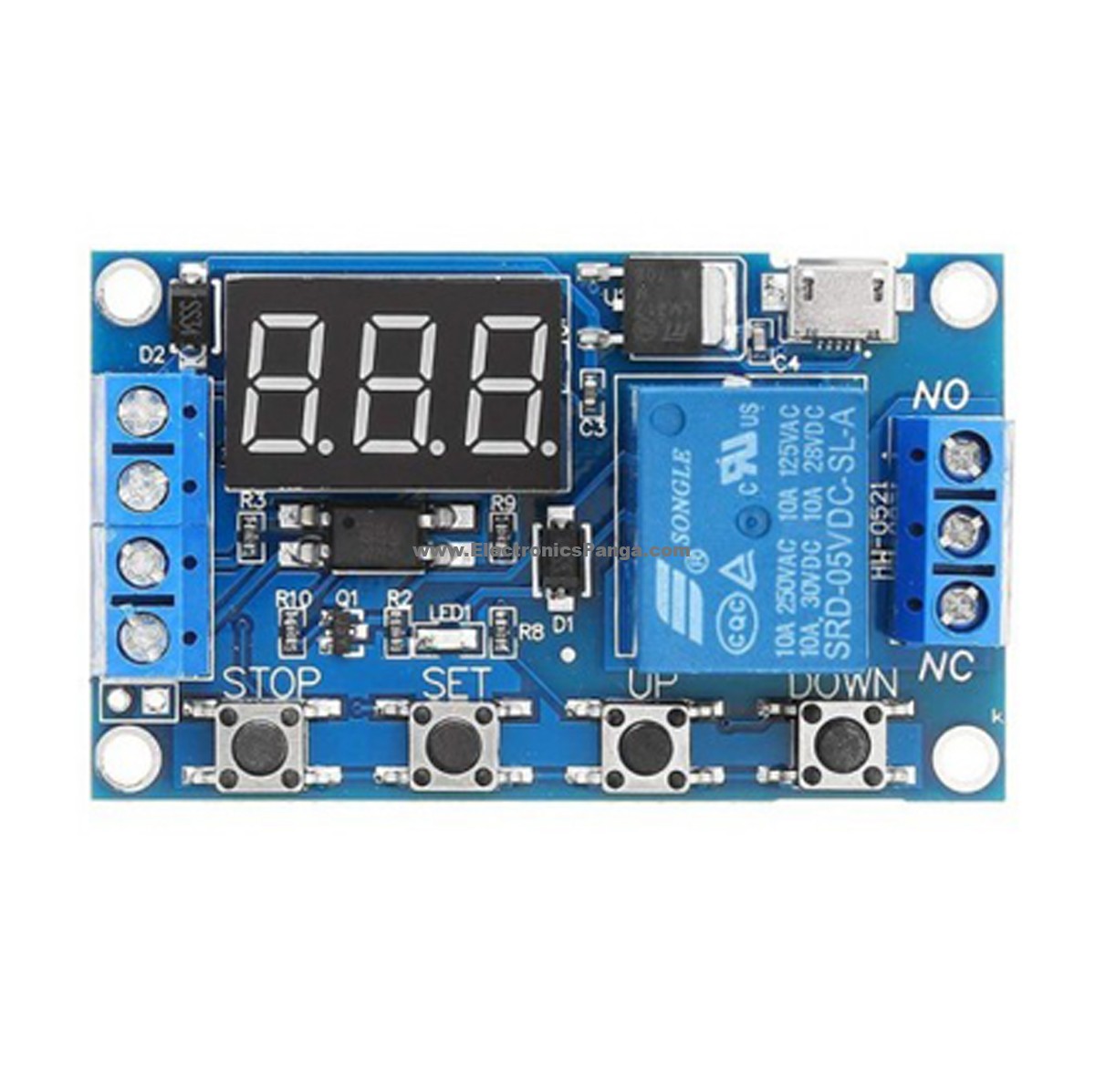

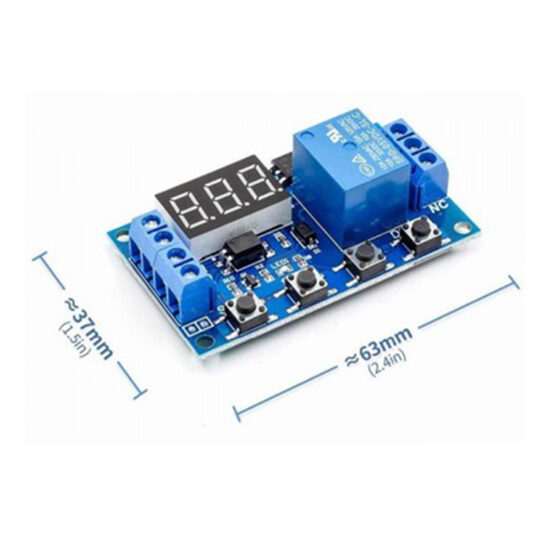

JZ-801 6-30V/DC Delay Timer Control Switch Relay Module

980.00₨

Out of stock

Add to wishlist
Category: Tags: , , , , ,

Description

Operating voltage: 6-30V, support micro USB 5.0V power supply
Trigger signal source: high-level trigger (3.0V-24V), the signal mass and system mass are not on the same mass to improve the system’s suppression capability (can also be short-circuited with the common ground)
Output capacity: can control devices within DC 30V 5A or AC 220V 5A
Standby current: 20mA, working current: 50mA
Time range: 0.1 – 999 min infinitely adjustable.
Lifespan: more than 100,000 times.
Working temperature: -40-85℃
