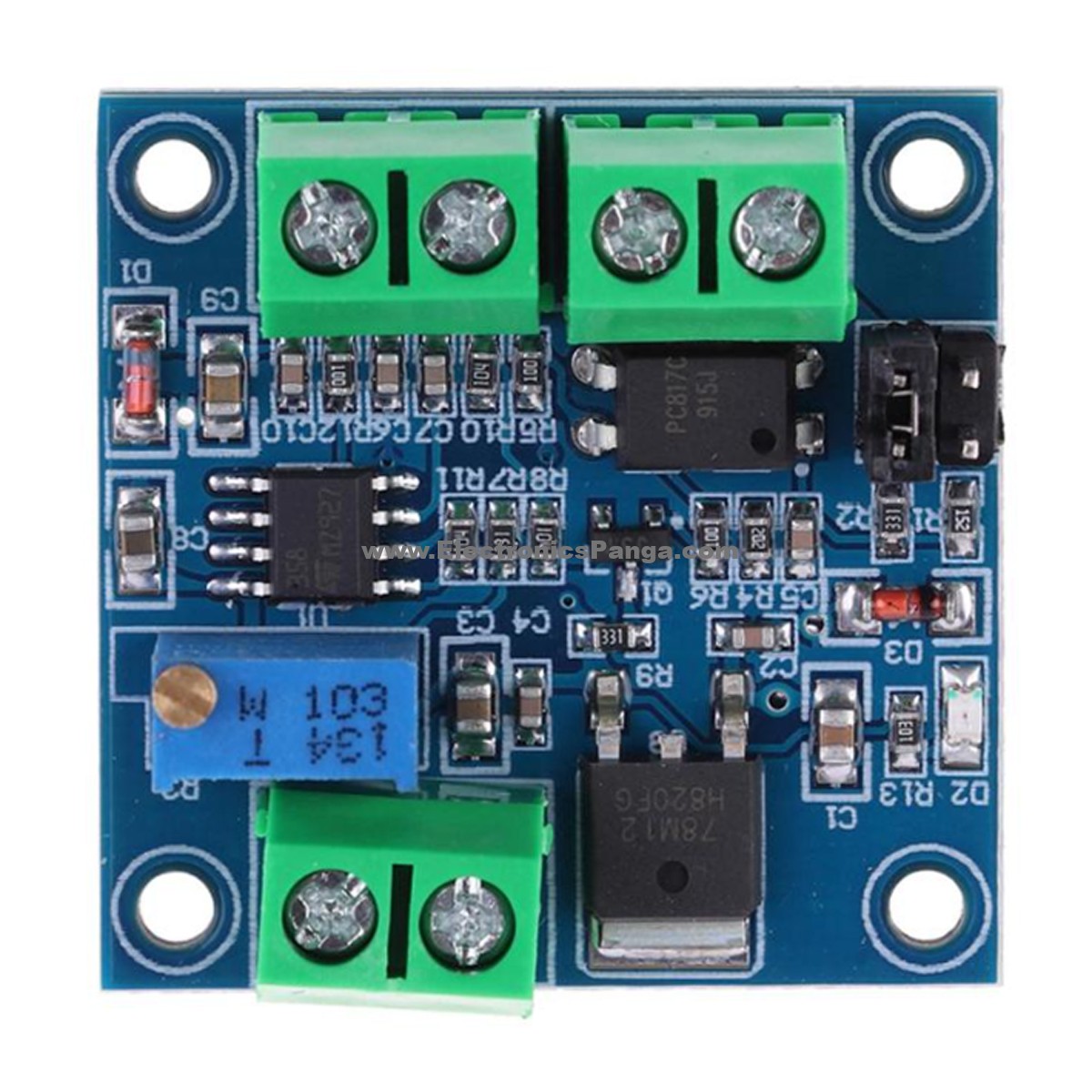

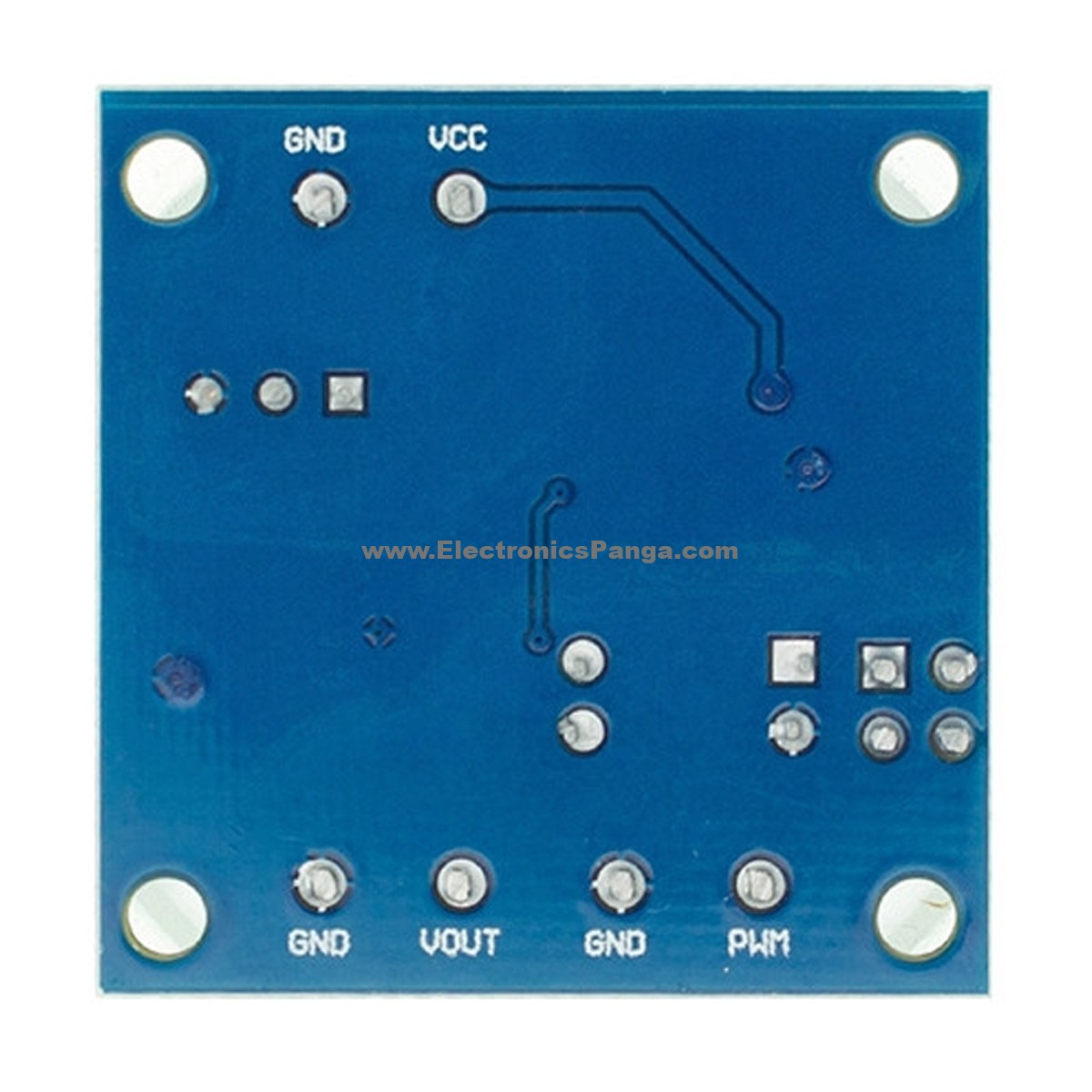

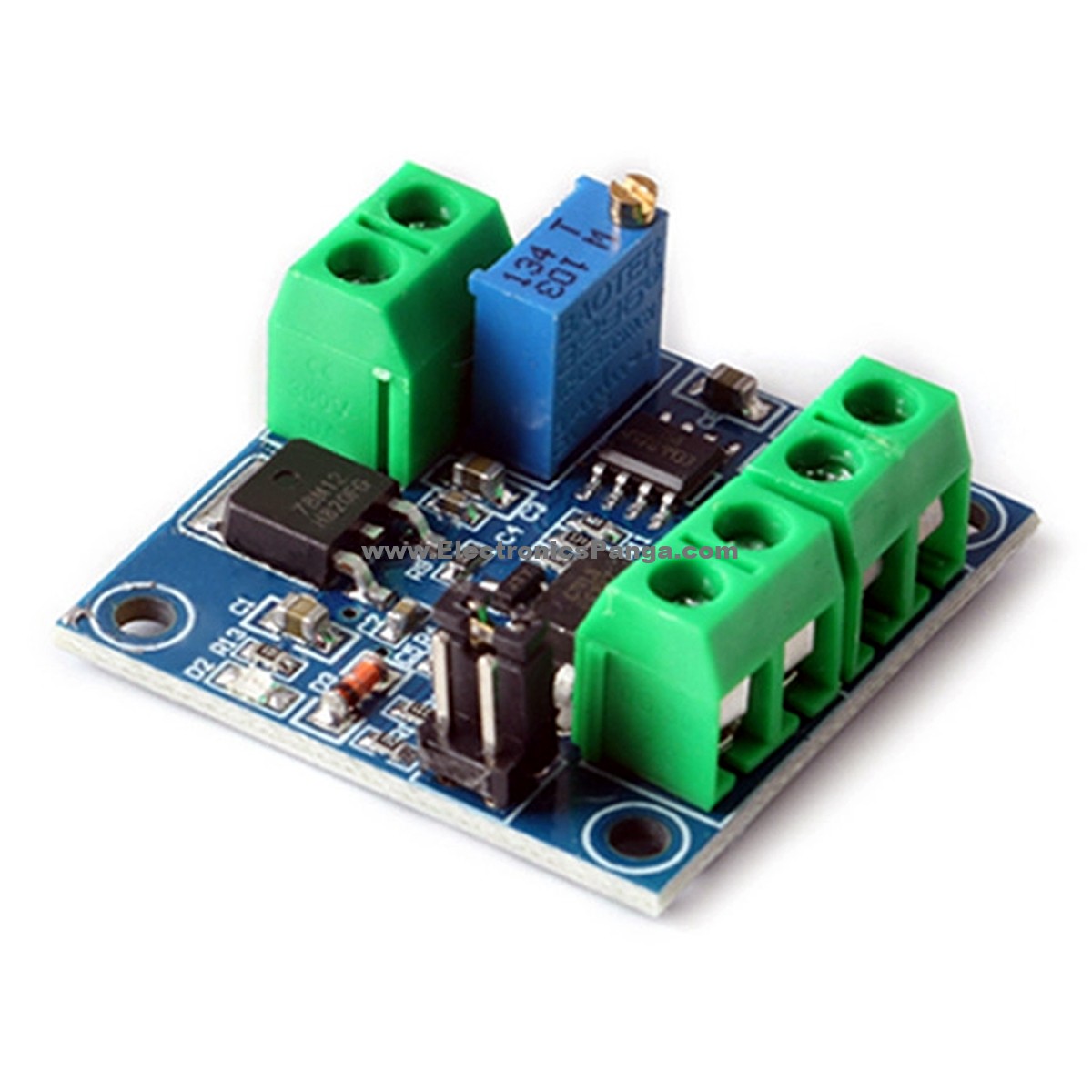

PWM to Voltage Converter Module 0-100% to 0-10V for PLC MCU Digital to Analog Signal PWM Adjustable Converter Power Module

Description

Working Voltage: DC 12V-30V; (> 100MA)
PWM Receiver Frequency: 1KHZ-3KHZ
PWM signal input level range: The peak of 4.5V to 10V level. The short cap install in 5V. This level is used for normal controller or 5V MCU
The peak of 12V to 24V level, so inserted in 24V. The short cap install in 24V. This level is used for normal PLC controller
Conversion range: 0-100% PWM to 0-10V
Allowable error: 5%
Board Size: 33X33mm
