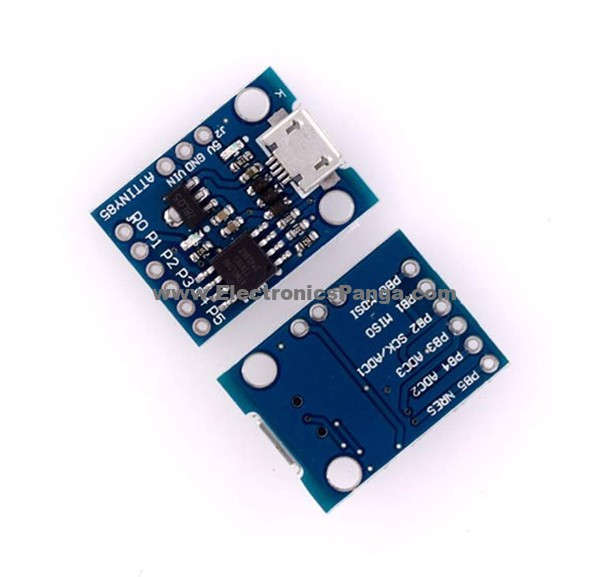

ATtiny85 Micro USB Microcontroller Development Board Shield Module for Arduino

Description

The Digi spark is an Attiny85 based microcontroller development board similar to the line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar IDE the Digi spark is a great way to jump into electronics or perfect for when an is too big or too much.

The Digi spark is shipped fully assembled except for the two included and easy to solder headers.

1. Support for the IDE 1.0+ (OSX/Win/Linux)
2. Power via USB or External Source – 5v or 7-35v (12v or less recommended, automatic selection)
3. On-board 500ma 5V Regulator
4. Built-in USB
5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
6. PWM on 3 pins (more possible with Software PWM)
7. ADC on 4 pins
8. Power LED and Test/Status LED

1 x Digi spark ATTINY85 Mini USB Development Board
