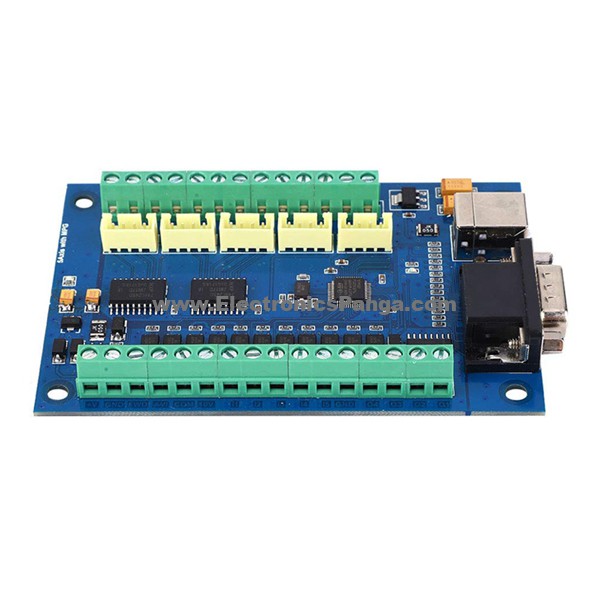

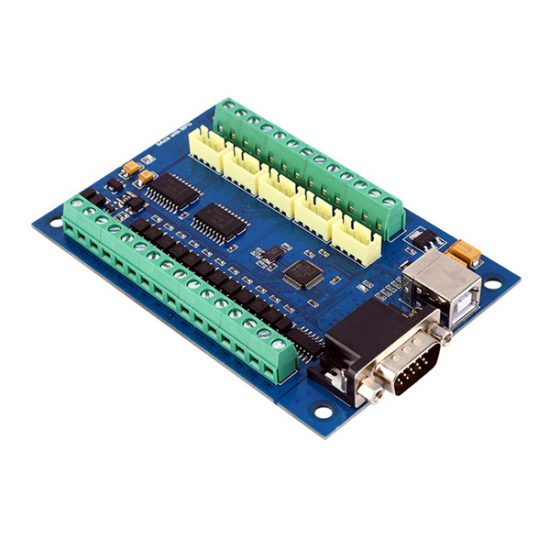

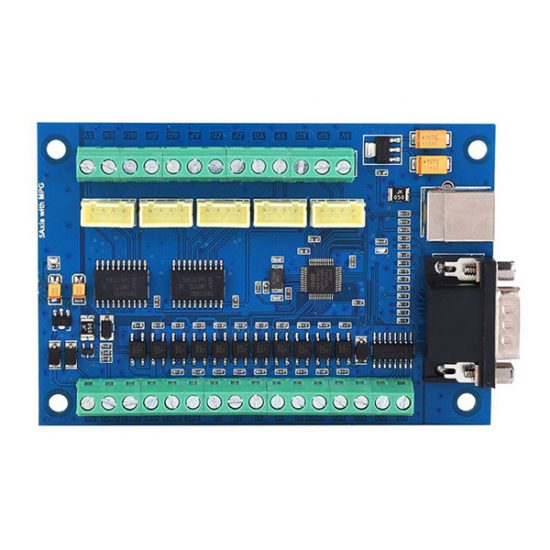

CNC Mach3 USB 5-Axis 100KHz Motion Controller Breakout Board

5,600.00

Out of stock

Description

  • Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system;
  • Applicable to all versions of mach3 software;
  • Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;
  • The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on pulse;
  • Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;
  • Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle’s speed, start and stop;
  • Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipments;
  • Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools;
  • Add the enable signal interface, can be used to control the driver enable signal;
  • The power of control card: voltage 12-24VDC, current more than 500MA.
  • Colour:Blue
  • Material: Plastic + Metal
