JK86HS78-4208 2-Phase 8-Wires 4A 1.8° Nema34 Stepping Motor STM23

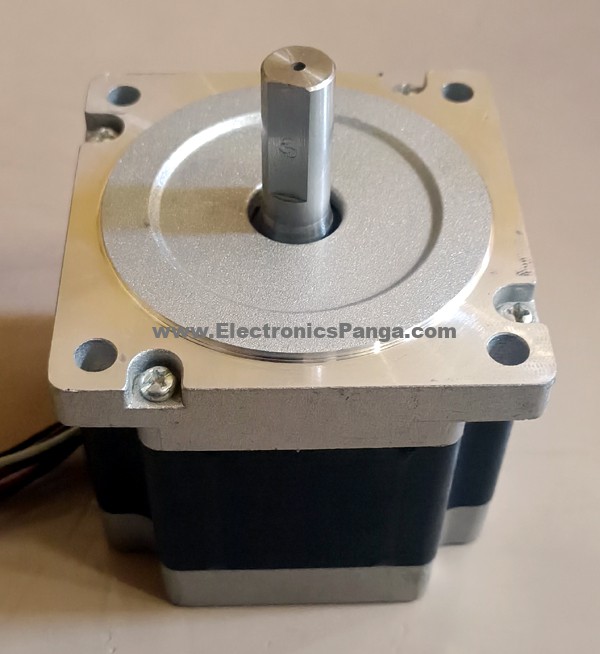

JK86HS78-4208 2-Phase 8-Wires 4A 1.8° Nema34 Stepping Motor STM23 - Image 2

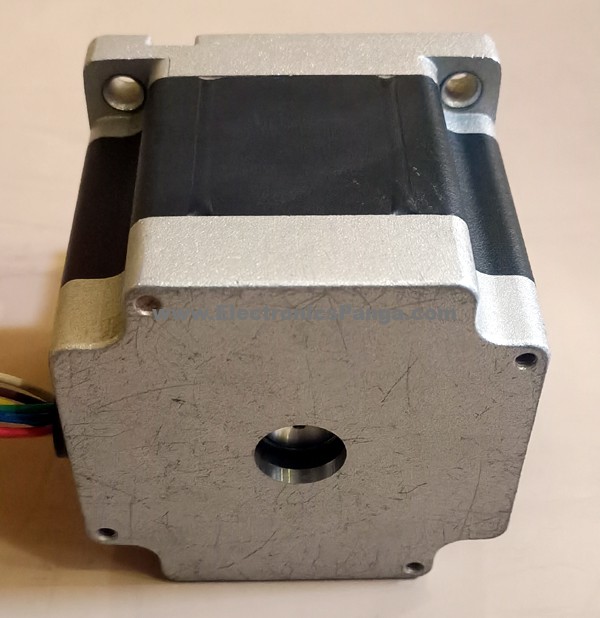

JK86HS78-4208 2-Phase 8-Wires 4A 1.8° Nema34 Stepping Motor STM23 - Image 3

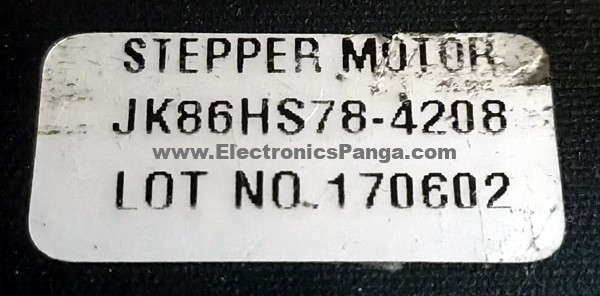

JK86HS78-4208 2-Phase 8-Wires 4A 1.8° Nema34 Stepping Motor STM23 - Image 4

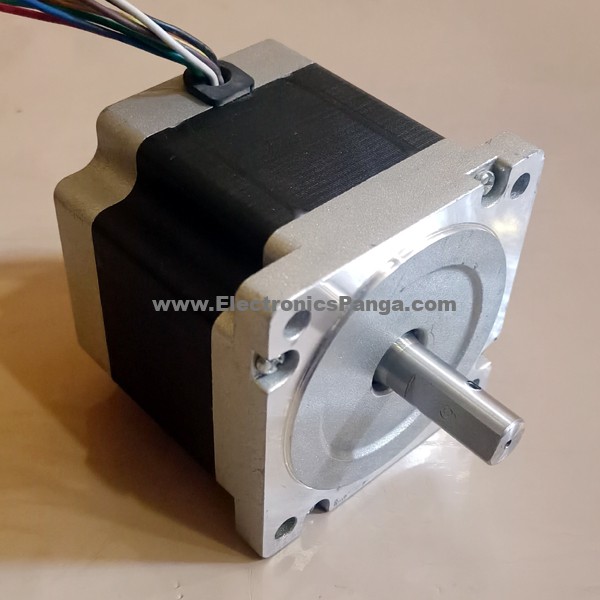

JK86HS78-4208 2-Phase 8-Wires 4A 1.8° Nema34 Stepping Motor STM23 - Image 5

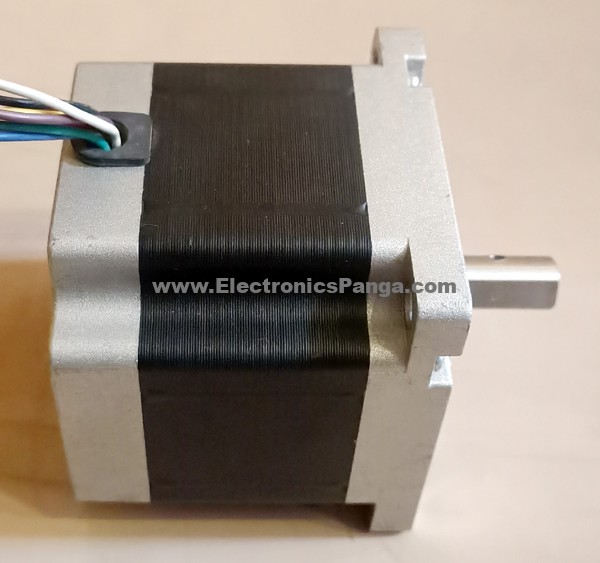

JK86HS78-4208 2-Phase 8-Wires 4A 1.8° Nema34 Stepping Motor STM23

8,500.00₨

Out of stock

Add to wishlist
Category: Tags: , , ,

Description

Condition: Used
Type: Nema34
Model: JK86HS78-4208
Phase: 2
Ampere: 4A
Number Of Wires: 8
Torque: 4.6N-m
Length(without flange & Shaft): 77mm
Width & Height: 86mm
Shaft Diameter: 12.5mm
Weight: 2.18kg
Item Code: STM23
…………………………………………………………………………………
TB6600, DM542 and other compatible stepper drivers are also available, Delivery across all over Pakistan.
