PANASONIC 2kw (2000w) MDMA202A1G AC Servo Motor + Driver MSD203A1V Tested MD42

Description

Condition: Used, Check Test, Ok
Brand: Panasonic
Power: 2kw (2000w)
Stock: 1 Set
Item Code: MD42
Include all jack (not encoder & power cable)

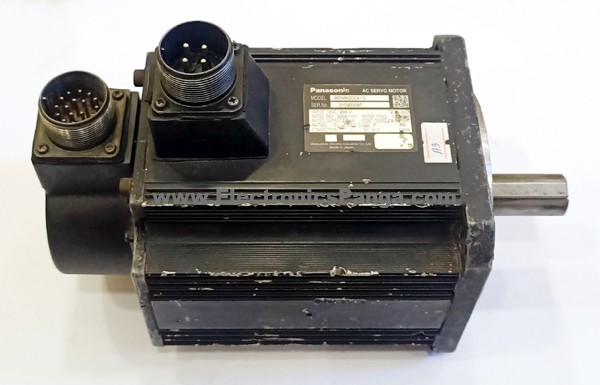

Motor Specification:
Model: MDMA202A1G
Input: 3Ph  200V  12.3A
Output: 2kw
Rated Rev: 2000r/min
Rated Frequency: 133Hz
Torque: 9.54N-m
Shaft Diameter: 22mm
Flange Diameter: 110mm
Weight: 10.6kg

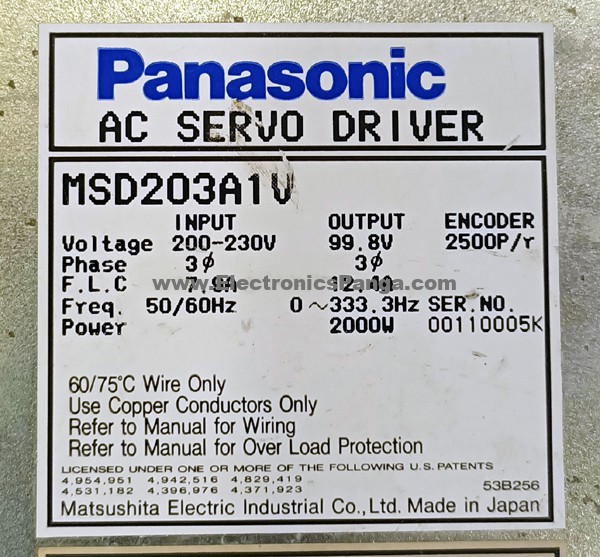

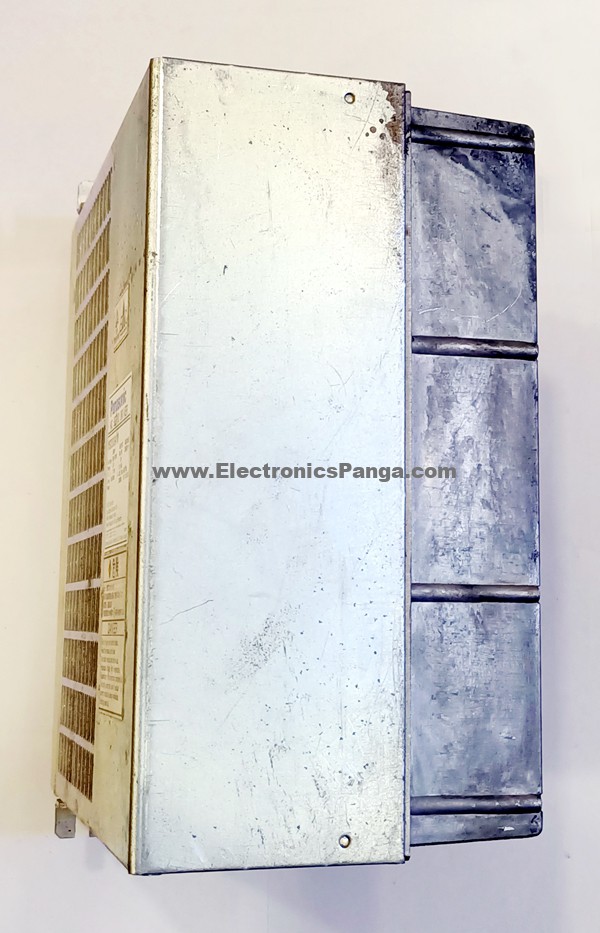

Driver Specification:
Model: MSD203A1V
Input: 3Ph  200-230V  50/60Hz  7.9A
Output: 3Ph  99.8V  0-333.3Hz   12.4A
Weight: 4.71kg

50w, 100w, 200w, 1kw 1.5kw, 3.5kw and above powers servo motor, drivers are also available. Delivery across all over Pakistan.
