YASKAWA 850w (0.85kw) SGMGH-09ACA6B AC Servo Motor + 1kw (1000w) SGDH-10AE Driver MD162

Description

Condition: Used, Check Test, Ok
Brand: Yaskawa
Stock: 1 Set
Item Code: MD162
Include all jack (not encoder & power cable)

Motor Specification:
Model: SGMGH-09ACA6B
Power: 850w (0.85kw)
Voltage: 200V 7.1A
Rated Rev: 1500r/min
Cont. Torque: 5.39N-m
Brake: Yes
Shaft Diameter: 19mm
Flange Diameter: 110mm
Weight: 9.46kg

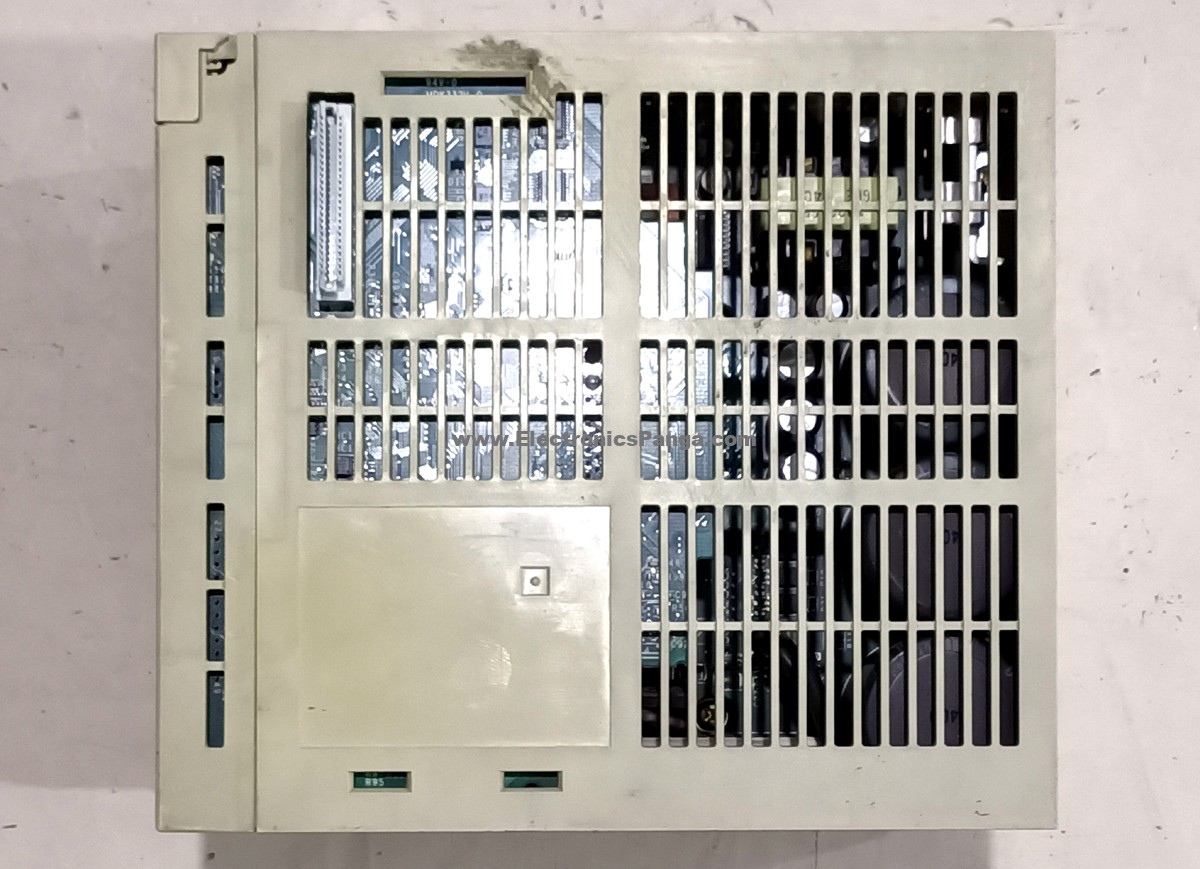

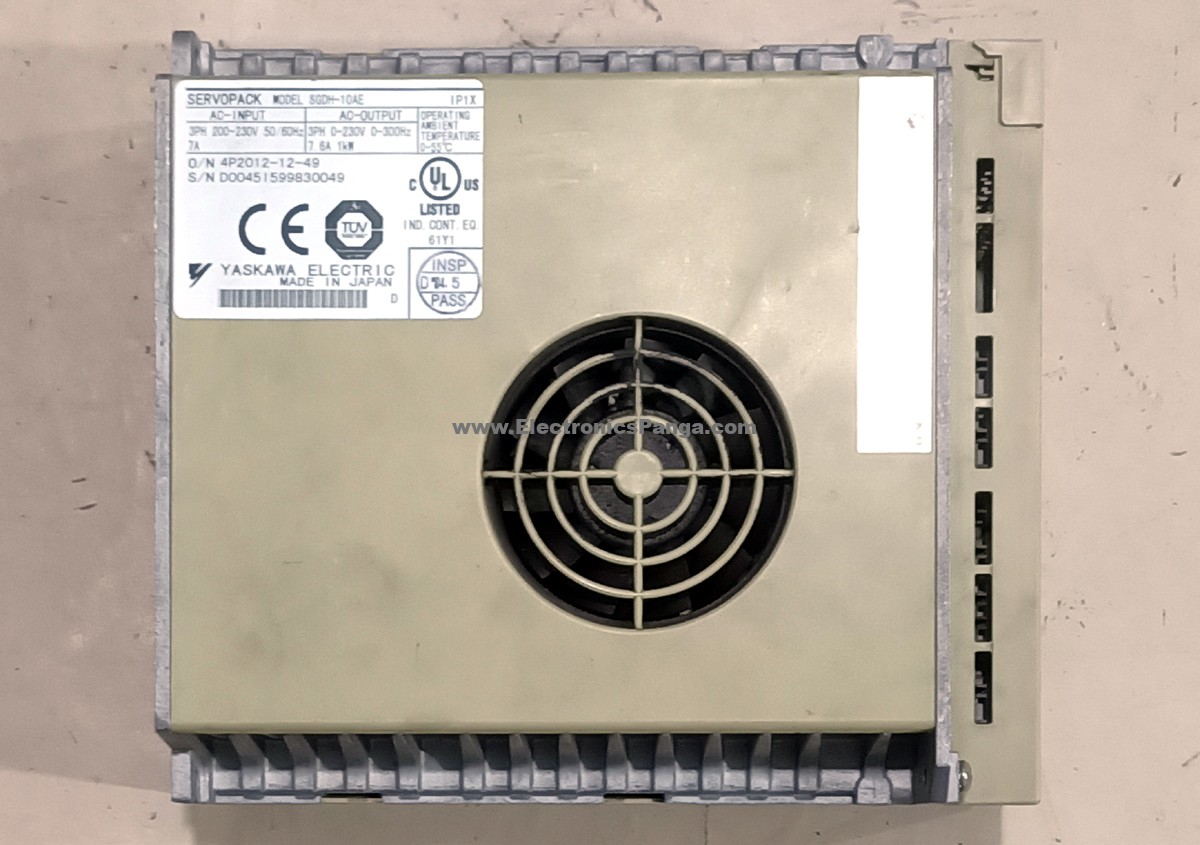

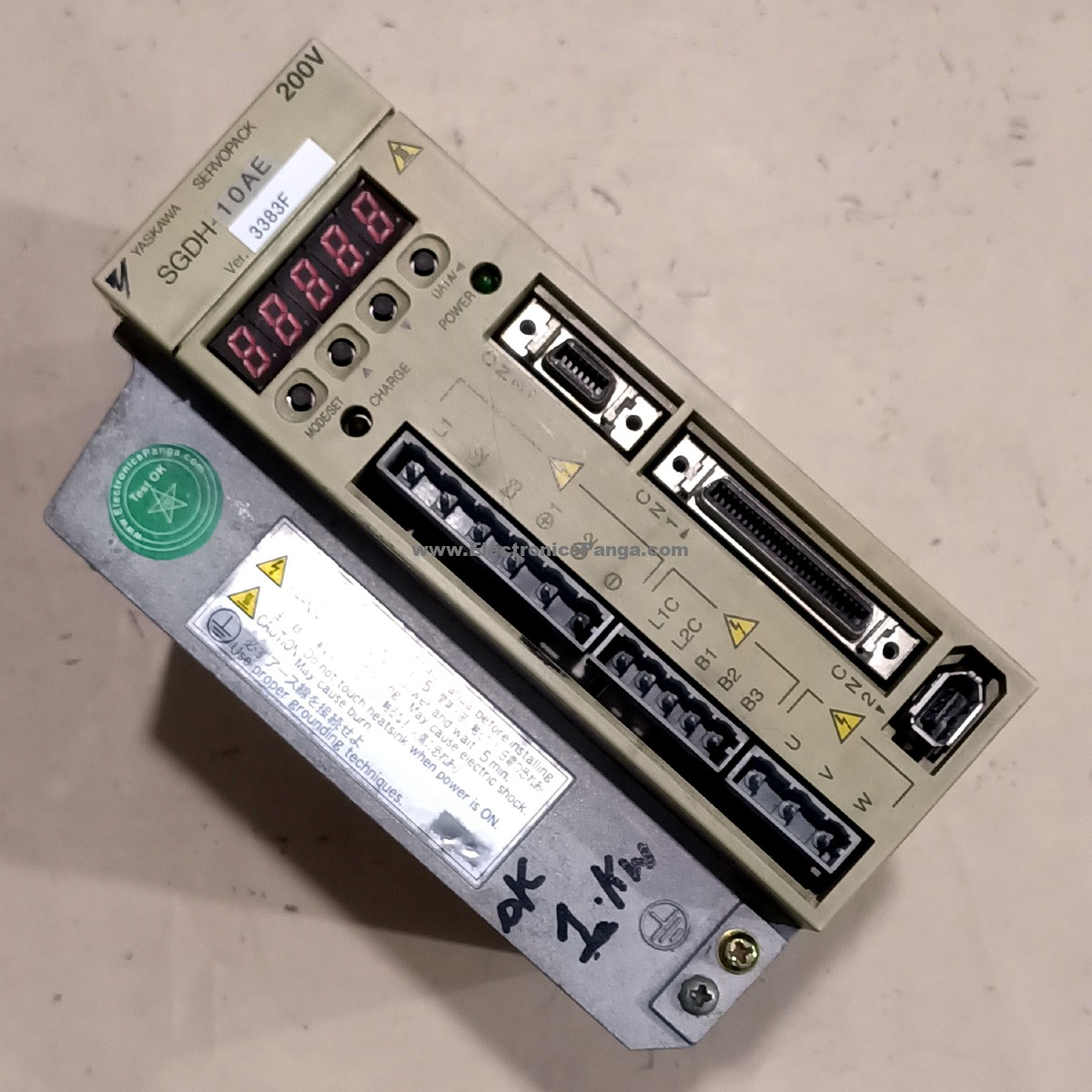

Driver Specification:
Model: SGDH-10AE
Power: 1kw (1000w)
Input: 3Ph  200-230V  50/60Hz  7A
Output: 3Ph  0-230V  0-300Hz  7.6A
Weight: 1.66kg

Stepper motors & drivers are also available. Delivery across all over Pakistan.
